SpoolPrinter class (com.iscobol.rts.print.SpoolPrinter) and the Print Preview
The isCOBOL Framework provides the ability to obtain a print preview.
This feature is applicable to all print files. In order to obtain a print preview you need to define the file as follows:
SELECT print-prev ASSIGN TO PRINT "-P PREVIEW" ORGANIZATION LINE SEQUENTIAL. |

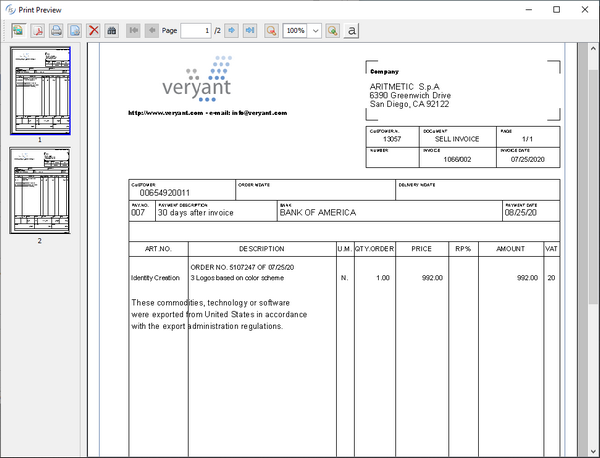

The preview dialog will show up when the print file is closed.
The tool-bar on top of the dialog allows you to:
• show or hide page preview thumbnails
• save the job as PDF file
• print the job with a physical printer
• close the dialog
• find text (available also by pressing CTRL+F)
• navigate through pages (if the job contains more than one page)
• zoom in and out for better reading
• apply aliasing on the text for better reading
The dialog title can be set through the configuration property iscobol.print.preview.title.
The dialog icon can be changed through the configuration property iscobol.print.preview.icon.
The com.iscobol.rts.print.SpoolPrinter class
The print preview dialog can be customized by calling methods of the internal factory class com.iscobol.rts.print.SpoolPrinter. These methods must be called before the print file is closed. The following table shows the javadoc of the existing methods.
static String | getDialogTitle() Returns the title of the preview window |
static javax.swing.ImageIcon | getImageIcon() Returns the current icon shown in the preview dialog title bar |
static java.awt.Point | getPreviewLocation() Returns the location in pixels of the preview dialog |
static double | getPreviewScale() Returns the current scale |
static java.awt.Dimension | getPreviewSize() Returns the size in pixels of the preview dialog |
static java.awt.Color | getPrintableAreaBoxColor() Returns the color of the frame in which the preview is displayed |
static String | getSaveDefaultDirectory() Returns the directory proposed by the Save As dialog |
static String | getSaveDefaultFilename() Returns the file name proposed by the Save As dialog |
static boolean | isCloseWindowAfterPrint() Returns if the preview dialog will close automatically after the document has been printed |
static boolean | isCloseWindowAfterPrintPdf() Returns if the preview dialog will close automatically after the document has been saved to PDF |
static boolean | isPreviewAliasing() Returns the status of the Aliasing button |
static boolean | isPreviewMaximized() Returns if the preview dialog is maximized |
static boolean | isShowExportMenu() Returns if the Export menu is visible (IDE reports only) |
static boolean | isShowPrintButton() Returns if the Print button is visible or not in the tool-bar |
static boolean | isShowPrintDialog() Returns if the Printer Setup dialog must be shown before printing |
static boolean | isShowPrintSetupButton() Returns if the Print Setup button is visible or not in the tool-bar |
static boolean | isShowSaveButton() Returns if the Save button is visible or not in the tool-bar |
static boolean | isShowThumbnailsButton() Returns if the Thumbnails button is visible or not in the tool-bar |
static void | setCloseWindowAfterPrint(boolean close) Specifies if the preview window will close automatically after the the document has been printed |
static void | setCloseWindowAfterPrintPdf(boolean close) Specifies if the preview window will close automatically the document has been saved to PDF |
static void | setDialogTitle(String title) Sets the title of the preview window |
static void | setImageIcon(javax.swing.ImageIcon icon) Sets the icon to show in the preview dialog title bar |
static void | setPreviewAliasing(boolean aliasing) Sets the status of the Aliasing button |
static void | setPreviewLocation(int x, int y) Sets the location in pixels of the preview dialog |
static void | setPreviewMaximized(boolean maximize) Choose if the preview dialog must be maximized or not |
static void | setPreviewMaximized(boolean maximize) Choose if the preview dialog must be maximized or not |
static void | setPreviewScale(double scale) Sets the current scale |
static void | setPreviewSize(int width, int height) Sets the size in pixels for the print preview dialog |
static void | setPrintableAreaBoxColor(java.awt.Color color) Sets the color of the frame in which the preview is displayed |
static void | setSaveDefaultDirectory(String path) Sets the directory proposed by the Save As dialog |
static void | setSaveDefaultFilename(String name) Sets the file name proposed by the Save As dialog |
static void | setShowExportMenu(boolean showExportMenu) Sets the visibility of the the Export menu (IDE reports only) |
static void | setShowPrintButton(boolean showPrintButton) Sets the visibility of the Print button in the tool-bar |
static void | setShowPrintDialog(boolean showPrintDialog) Choose if the Printer Setup dialog must be shown before printing |
static void | setShowPrintSetupButton(boolean showPrintSetupButton) Sets the visibility of the Print Setup button in the tool-bar |
static void | setShowSaveButton(boolean showSaveButton) Sets the visibility of the Save button in the tool-bar |
static void | setShowThumbnailsButton(boolean showThumbnailsButton) Sets the visibility of the Thumbnails button in the tool-bar |
Note - The com.iscobol.rts.print.SpoolPrinter class affects also Reports generated by the IDE.
The following sample shows how to make the preview dialog appear with the zoom set to 50%:
CONFIGURATION SECTION. REPOSITORY. class is-spoolprinter as "com.iscobol.rts.print.SpoolPrinter" . INPUT-OUTPUT SECTION. FILE-CONTROL. select print-job assign to printer "-P PREVIEW" organization line sequential. FILE SECTION. FD print-job. 01 print-record pic x(83). PROCEDURE DIVISION. main. open output print-job. write print-record from "test zoom". is-spoolprinter:>setPreviewScale(50 as double). close print-job. goback. |
Thin Client
In a Thin Client environment, print jobs are managed client side so the print preview dialog must be configured and invoked client side. In order to invoke com.iscobol.rts.print.SpoolPrinter methods client side, you can rely on the CobolGUIJavaBean Class (com.iscobol.gui.server.CobolGUIJavaBean).
The following sample shows how to make the preview dialog appear client side with the zoom set to 50%:
CONFIGURATION SECTION. REPOSITORY. class is-java-bean as "com.iscobol.gui.server.CobolGUIJavaBean" class j-double as "java.lang.Double" . INPUT-OUTPUT SECTION. FILE-CONTROL. select print-job assign to printer "-P PREVIEW" organization line sequential. FILE SECTION. FD print-job. 01 print-record pic x(83). PROCEDURE DIVISION. main. open output print-job. write print-record from "test zoom". is-java-bean:>callStaticMethod("com.iscobol.rts.print.SpoolPrinter", "setPreviewScale", j-double:>new(50 as double)). close print-job. goback. |
Note - The com.iscobol.preview.PreviewDialogSettings JavaBean has been deprecated. It’s still supported for backward compatibility but it lacks the latest methods implemented in com.iscobol.rts.print.SpoolPrinter.
