isCOBOL 2024 R2 introduces a new control named CHIPS-BOX, a container that shows a list of chips in a box. Additional enhancements involve W$BITMAP and configurations to let developers customize and centralize window creation and control events.

The chips-box is typically used in web environments to let users pick a set of values from a predefined list, or to add new values not in the list. One of the most common uses of chips boxes is “tagging”, where the user can pick existing tags or make up new ones.

In the 2024 R2 release isCOBOL implements this new control, using the syntax shown below:

The snippet declares a chip box element in the screen section, and in the procedure division the MODIFY statement adds a new chip with a leading bitmap.

The container can be customized using the following properties:

Colors can be set on the chips themselves, or can be set as default on the container using the specific properties:

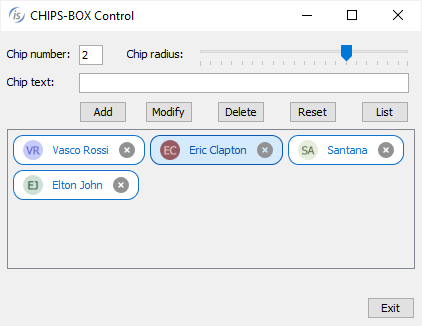

The result of running the program is shown in Figure 4, New CHIPS-BOX control, and the user is selecting the second chip, which is then painted using the rollover colors set.

When the user clicks on the chip, the CMD-CLICKED event is fired, and when the X icon is clicked, the MSG-CLOSE event is fired. Developers can implement code to react to such events.

The new WBITMAP-TEXT-BOX opcode has been implemented in the W$BITMAP routine to generate images from text. The typical usage scenario is to display an avatar for a user account: if a user does not have an image selected for the account, an image is shown with the user’s initials.

This feature is also used in the previous program for CHIPS where the leading bitmap is created dynamically by the program.

This code snippet:

can be used to create an image with the text and color settings passed in the structure wbitmap-tb-data, and the resulting bitmap handle h-image-icon can be used in any control that supports a bitmap handle.

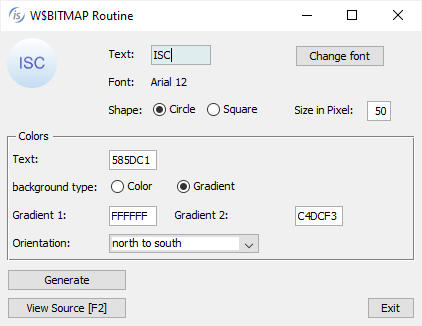

The results of the program in execution are shown in Figure 5, W$BITMAP wbitmap-textbox op-code, where the text “ISC” is represented in the circle image.

The entry-field proposal feature has been enhanced by adding a new PROPOSAL-FILTERTYPE property that can be used to customize filtering of the proposal list of Entry-Field, and the possible values can be:

In addition, the text that matches is highlighted in the list. The following is a code snippet that shows usage the new property:

In Figure 6, PROPOSAL-FILTER-TYPE on entry-field, shows the results when running with filtering in progress.

The window supports a new WINDOW-STATE property that can be used in the INQUIRE statement to detect the state of the window, allowing the code to check if the window is minimized or maximized, as shown in this snippet of code:

The event-data-1 and event-data-2 data items returned in the MSG-MOUSE-ENTER event fired for controls like grids, list-box and tree-view when the NOTIFY-MOUSE style is set now contain more detailed information. For example, in a grid the cell coordinates are included, and in a tree-view the mouse coordinates are included.

New configurations have been implemented to customize GUI control behavior:

The class needs to implement the isCOBOL interface ”com.iscobol.rts.WindowCreateHandler”. Developers can inquire and modify attributes before or after window creation.

The following is a code snipped of the class-id source:

When running using the configuration:

the class is invoked for every window created. If the window type is INDEPENDENT and the runtime environment is WebClient then the window is colored differently and set to UNDECORATE. This feature allows extensive control to windows. For example, a hook program can be used to customize the appearance of an application depending on the environment the program is run on.

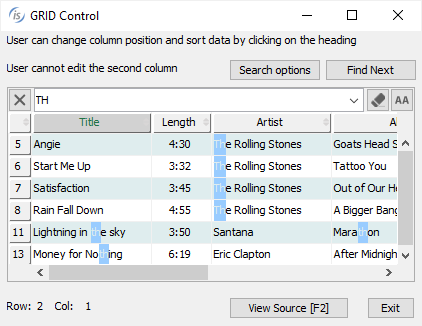

the selected text in the entry-field proposal and in the search result of list-box and grid controls is painted using the provided combination of RGB colors as background/foreground text color.

For example, a program like this:

with the configuration set using:

will enable a developer to centrally manage the events msg-bitmap-clicked for the entire application.

The program EFXICON will be executed and it will manage the event with specific code just for clicking on trailing bitmaps in entry-field controls.

This solution can be easily adopted when using code injection. For example to activate the X icon as a trailing bitmap in all entry-fields, just compile with this configuration:

This approach of centralized handling is similar to what can be achieved using the configuration iscobol.hot_key.PROGNAME=n to manage the function keys or any exception value.
