How to print Reports
Retrieving data for the Report
Which method you use to retrieve data for your Report depends on whether you use tagged areas or not.
For programs that don’t use Tagged Areas (default), follow these steps:
• Write COBOL statements to retrieve the first data record in the BeforeDoPrint procedure of your Report.
Code example:
report-1-bef-do-print. move low-value to prd-key start product key not < prd-key invalid move 0 to report-1-doprintrtn-loop not invalid move 1 to report-1-doprintrtn-loop read product next no lock at end move 0 to report-1-doprintrtn-loop end-read end-start . |
<ReportName>-doprintrtn-loop is a variable declared automatically by the IDE. When you set this variable to 0 the print loop is interrupted, when you set it to 1 the print loop continues.
• Write COBOL statements to retrieve the next record in the AfterDoPrint procedure of your Report.
Code example:
report-1-aft-do-print. move 1 to report-1-doprintrtn-loop read product next no lock at end move 0 to report-1-doprintrtn-loop end-read . |
For programs that use Tagged Areas, follow these steps:
• Write COBOL statements to retrieve data for the Report in the paragraph "is-<reportname>-master-print-loop". This paragraph is automatically generated with your report project.
Code example:
move low-value to prd-key start product key not < prd-key invalid continue not invalid perform until 1 = 2 read product next at end exit perform end-read perform IS-REPORT-1-DO-PRINT-RTN end-perform end-start. |
Note that for each record read in the above loop, the paragraph IS-<ReportName>-DO-PRINT-RTN is performed. This paragraph is responsible for printing the data.
Printing the Report
The following paragraphs are always generated for programs with reports. You can perform them in your program logic. Choose the proper one according to the desired printer output:
Paragraph Name | Action |
|---|---|
is-report-name-preview | Opens the Report in a Print Preview The preview dialog is very similar to the one shown by the SpoolPrinter class (com.iscobol.rts.print.SpoolPrinter) and the Print Preview, but the preview dialog generated by the IDE also allows you to export the report to xls and xlsx files.  See Exporting to Excel file below for details. If you wish to customize the preview dialog, you can invoke The com.iscobol.rts.print.SpoolPrinter class before jumping to this paragraph. |
is-report-name-print | Prints the Report on the active printer |
is-report-name-print-pdf | Prints the Report to a PDF file. The name and location of the PDF file are calculated according to the output file name property. This property should specify a file name with ".html" extension. The IDE will take care of generating a file with the same name and ".pdf" extension. |
is-report-name-print-xls | Prints the Report to an Excel 97-2003 workbook. The name and location of the XLS file are calculated according to the output file name property. This property should specify a file name with ".html" extension. The IDE will take care of generating a file with the same name and ".xls" extension. |
is-report-name-print-xlsx | Prints the Report to an Excel workbook. The name and location of the XLSX file are calculated according to the output file name property. This property should specify a file name with ".html" extension. The IDE will take care of generating a file with the same name and ".xlsx" extension. |
is-report-name-print-tofile | Prints the Report to an HTML file. The name and location of the HTML file are controlled by the output file name property. |
is-report-name-setup-print | Shows the Choose Printer dialog, then prints the Report on the chosen printer |
Exporting to Excel file

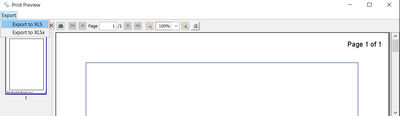

The Export menu in the print preview dialog allows you to export the current report to either a XLS or XLSX file.
The export process can be configured through specific properties. See Export to Excel feature for details.
There are a few limitations if compared with the HTML report:
• Header and footer information like the page number are skipped and don’t appear in the Excel file.
• If the report includes more lines than the maximum number of lines allowed by the XLS format, then the report is automatically split into multiple spreadsheets.
• If the report includes more columns than the maximum number of columns allowed by the XLS format, then the export fails, but no error is shown.
